Showing 37–48 of 51 results
-
Read more
Chemical, engineering, foodstuff, pharmaceutic industry where contamination is not allowed. Water, steam, oils, fuels, solvents, acids and alkalies except for strong oxidants.
- Pure PTFE yarn braided
- Temperature (ºC) -100 – 260
- Pressure (Bar) 100
- Velocity (m/s) 10
- PH0-14
- Size: 3×3mm–50×50mm
-
Read more
Chemical engineering, foodstuff, pharmaceutic industry where high purity and corrosion resistance is required. Water, steam, oils, fuels, solvents, acids and alkalies except for strong oxidants.
- Pure PTFE yarn, PTFE, lubricating oil braided
- Temperature (ºC) -100 – 260
- Pressure (Bar) 100
- Velocity (m/s) 10
- PH0-14
- Size: 3×3mm–50×50mm
-
Read more
It is most useful in slower shaft speed applications. The rubber core provides a low friction finish and prevents leakage through the braid. Chemical, paper, dye and fertilizer industries. Steam, fuels, water, dilute acids and alkalies, organic compounds, oils, greases and solvents, etc.
- PTFE yarns, silicone rubber core, braided
- Temperature (ºC) 260
- Pressure (Bar) 200
- Velocity (m/s) 22
- PH0-14
- Size: 3×3mm–50×50mm
-
Read more
Chemical, paper, dye and fertilizer industries. Water, steam, oils, solvents, salts, acids and alkalies except for very strong oxidants
- 100% GORE® GFO® fiber
- Temperature (ºC) -240 – 288
- Pressure (Bar) 131
- Velocity (m/s) 21.8
- PH0-14
- Size: 3×3mm–50×50mm
-
Read more
Chemical industry – for aggressive media pumping; Power industry – for sealing of high-temperature pumps feeding the boilers; Petrochemical industry – resistance to oils and hydrocarbons. Water, brine, factory waste, salt solutions, weak acid, mineral oil, etc.
- Carbon Fiber, Graphite, PTFE, braided
- Temperature (ºC) -240 – 650
- Pressure (Bar) 276
- Velocity (m/s) 18
- PH2-13
- Size: 3×3mm–50×50mm
-
Read more
Chemical industry – for aggressive media pumping; Power industry – for sealing of high-temperature pumps feeding the boilers; Petrochemical industry – resistance to oils and hydrocarbons. Water, brine, factory waste, salt solutions, weak acid, mineral oil, etc.
- Carbonized Fiber, PTFE, braided
- Temperature (ºC) 450
- Pressure (Bar) 300
- Velocity (m/s) 16
- PH2-12
- Size: 3×3mm–50×50mm
-
Read more
Chemical industry – for aggressive media pumping; Power industry – for sealing of high-temperature pumps feeding the boilers; Petrochemical industry – resistance to oils and hydrocarbons. Water, brine, factory waste, salt solutions, weak acid, mineral oil, etc.
- Graphite, Carbon Fiber, braided
- Temperature (ºC) -184 – 649
- Pressure (Bar) 241
- Velocity (m/s) 30.5
- PH0-14
- Size: 3×3mm–50×50mm
-
Read more
Textile, power, chemical and mining industries. The products are almost suitable to all media, such as water, dilute acids and alkalies, organic compounds, oils and greases, etc.
- Expanded graphite braided
- Temperature (ºC) Atmosphere:-210~450
- Temperature (ºC) Steam: up to 650
- Velocity (m/s) 20
- Pressure (Bar) Pump:27.5
- Pressure (Bar) Valve:450
- PH0-14
- Size: 3×3mm–50×50mm
-
Read more
Chemical industry (for aggressive media pumping),power industry (for sealing of high-temperature pumps feeding the boilers), petrochemical industry(resistance to oils and hydrocarbons).
- Graphite, Inconel wire braided
- Temperature (ºC) 650°C Steam
- Temperature (ºC) 450°C Oxidizing condition
- Temperature (ºC) -240°C Cryogenics
- Pressure (Bar) 450
- Velocity (m/s) 20
- PH0-14
- Size: 3×3mm–50×50mm
-
Read more
Hot water, high temperature and pressure steam, hydrogen gas, hydrocarbons, cryogenic liquids. etc. Petrochemical, power, chemical, mining industry.
- Graphite, Inconel wire mesh jacketed Graphite Filament
- Temperature (ºC) 650°C Steam
- Temperature (ºC) 450°C Oxidizing condition
- Temperature (ºC) -240°C Cryogenics
- Pressure (Bar) 450
- Velocity (m/s) 20
- PH0-14
- Size: 3×3mm–50×50mm
-
Read more
Glass fiber is standout among the different organic and inorganic fibers as ideal replacement of asbestos.It is made of good quality glass fiber impregant graphite,, it has many excellent capabilities of hightemperature resistance, low density and low thermal conductivity, better insulation and incombustible etc.
- Glass Fiber, Graphite dispersion, braided
- Temperature (ºC) 600°C Steam
- Temperature (ºC) 450°C Oxidizing condition
- Pressure (Bar) 20-100
- Velocity (m/s) ≤10
- PH. 5~9
- Size: 3×3mm–50×50mm
-
Read more

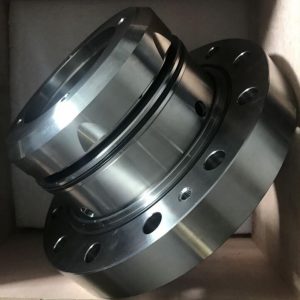

Model:
M7N; M37G; M32; M3N; MG1; MG12; MG13; 502; Cartex; HJ92N; HRN; DBL Grundfos; DCL Grundfos; BIA; WB2; FBD; 59U; MG9; M481; MFL85; 2100; 108; 212; 103; 104; 202; 207; 112; 113; 1523; 1527; H10; H12; M74D; M74F-D; 318I; 224; H7N; 120; 121; 124; 126; 108U; 105; 155; 166; 204; 301; 5610 、 5620; 960;
