GH4500–Asbetos Packing with Graphite
Dynamic sealing–To be used as a stuffing box in pumps (especially boiler feed pumps) and in valves. Resistant to alkaline solutions, inert fluids, steam, gases, hot water and salt solutions.It has a good elasticity and very good sliding properties.
- Asbestos, graphite, oil
- Temperature (ºC) -100 – 450
- Pressure (Bar) 80
- Velocity (m/s) 10
- PH3-11
- Size: 3×3mm–50×50mm

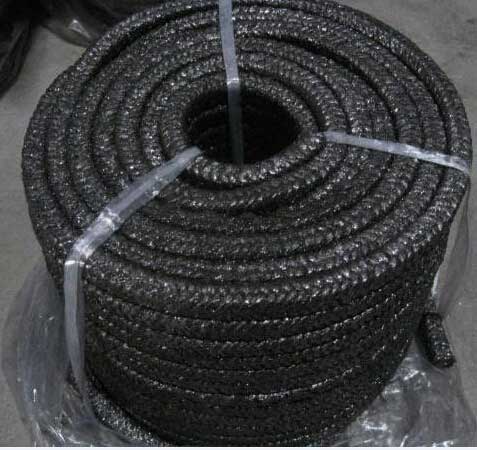

Asbetos Packing with Graphite
| Style GH4500 | Working Conditions |  |
| Temperature (ºC) | -100—450 | |
| Pressure (Bar) | 80 | |
| Velocity (m/s) | 10 | |
| PH | 3-11 |
Composition: Asbestos, graphite, oil
Application:
Dynamic sealing–To be used as a stuffing box in pumps (especially boiler feed pumps) and in valves. Resistant to alkaline solutions, inert fluids, steam, gases, hot water and salt solutions.
It has a good elasticity and very good sliding properties.
Size:3×3mm–50×50mm；Others can be produced according to client’s requirement.
